Water Quality

Neon Open

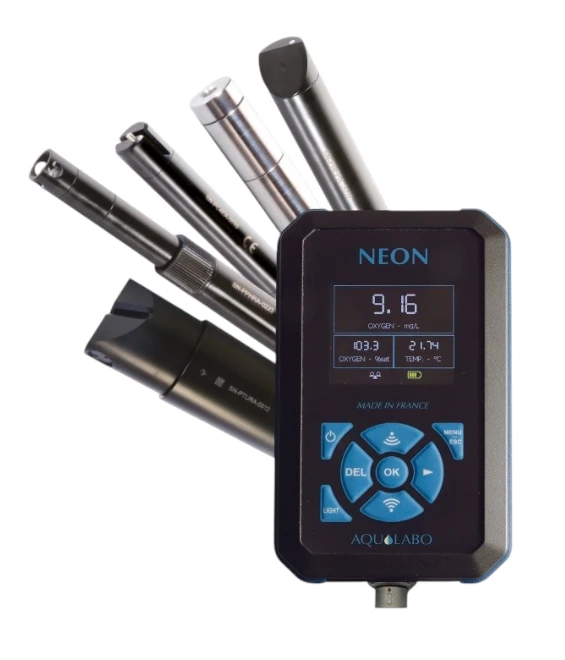

The NEON Open is a robust, easy to use portable water quality meter designed for use with any digital sensor from the AQUALABO DIGISENS range.

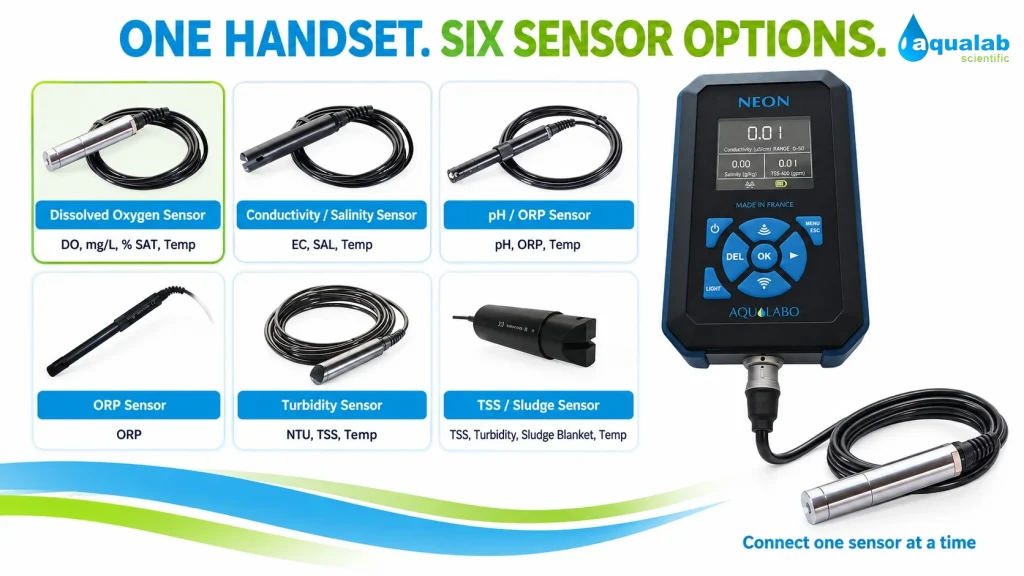

Available parameters include:

• Dissolved Oxygen Sensor (mg/L and % SAT, Temp).
• Conductivity Sensor (EC, SAL & Temp).
• pH Sensor: pH, ORP & Temp.
• Turbidity Sensor: NTU, TSS (solids) and Temp.
• TSS Sensor: TSS (solids), Turbidity, Sludge Blanket & Temp.
• Sludge Sensor: Sludge blanket detection and Temp.

Applications

NEON Open is suitable for a broad range of portable water quality monitoring programs, including:

• Surface water and groundwater monitoring.
• Wastewater treatment plants, including inlet, aeration basin and outlet monitoring.
• Industrial wastewater treatment.
• Aquaculture, including recirculating aquaculture systems, ponds and offshore cages.
• Fish farming and hatchery monitoring.
• Aquariums.
• Sludge blanket monitoring and solids measurement.
• Field verification and spot checking of water quality conditions.

Robust Portable Design

Built for regular field use, NEON Open provides a practical balance of portability, durability and straightforward operation.

• IP67 protection rating.
• Operating temperature range of -5 to 50°C.
• Graphic LCD display with backlight.
• Robust 6-pin metal sensor connector.
• Compact dimensions: 146 x 88 x 33 mm.
• ABS housing with waterproof battery compartment.

Designed for Efficient Field Monitoring

NEON Open combines a simple handheld interface with digital sensor technology to make routine field measurements fast and practical.

• Sensor-specific menus and calibration functions simplify operation.
• Digital signal processing and pre-amplification are integrated into the sensor.
• Calibration, measurement history and sensor information are retained within the connected sensor.
• Automatic atmospheric-pressure compensation supports dissolved oxygen measurement in mg/L.
• Measurement freeze function can hold a reading once stability conditions are achieved.
• Automatic screen and instrument shutdown settings help conserve battery life.

Data Recording and Transfer

NEON Open supports both individual spot measurements and unattended interval recording.

• Record up to 30,000 measurements.
• Capture individual readings manually in snapshot mode.
• Configure automatic logging intervals from 10 seconds to 1 hour.
• Name monitoring campaigns directly on the instrument.
• Transfer recorded data to a computer via WiFi.
• Export data in CSV format for reporting, analysis and record keeping.

What Users Love Most

• Automatic sensor recognition on start up.
• Simultaneous display of up to four parameters, depending on the connected sensor.
• Stores up to 30,000 measurement points.
• Manual and automatic interval recording modes.
• WiFi transfer of recorded data in CSV format, with no data cable required.
• Rugged IP67-rated ABS housing for field use.
• Lightweight design, weighing approximately 880 g.
• Powered by three AA batteries.
• Backlit graphic LCD screen with adjustable brightness.
• Integrated measurement-stability indication.
• 3, 7 and 15 m sensor cable options available.

This product is manufactured by Aqualabo and proudly represented by Aqualab Scientific.
