Urban Flood Warning Station

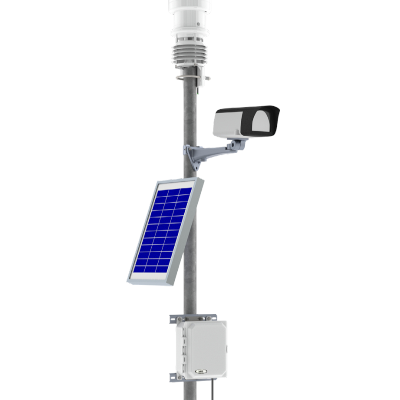

The Sutron Urban Flood Warning Station is a turnkey, real time flood monitoring solution designed to help councils, utilities, and asset owners proactively manage flood risk in urban and catchment environments.

The system combines reliable water level monitoring, optional weather and visual observations, autonomous solar power, and two way cellular communications to deliver timely alerts and actionable data during flood events. The modular design allows the station to be tailored to site specific requirements and expanded over time as monitoring needs evolve.

Applications

The Urban Flood Warning Station is well suited to:

• Urban drainage and stormwater monitoring
• River and creek flood warning networks
• Culvert and bridge level monitoring
• Catchment scale flood management
• Council and utility flood risk programs

Flood Warning System

The Sutron Urban Flood Warning Station is designed for rapid deployment and long term reliability. Each station includes the core components required to establish a resilient monitoring point while supporting additional instruments for enhanced situational awareness.

Key benefits include:

• Continuous, real time monitoring of flood conditions
• Remote data access and alarm notifications
• Modular architecture for future expansion
• Autonomous solar powered operation
• Robust enclosure suitable for harsh outdoor environments

Stakeholder Notification

Remote data transmission and alarm notifications allow stakeholders to respond quickly to changing conditions. By transforming accurate field measurements into meaningful insights, the Urban Flood Warning Station supports informed decision making that helps protect communities, infrastructure, and assets.

Core Components

Datalogger and Telemetry

At the heart of the station is a Sutron XLink datalogger providing:

• Multi-sensor input support (SDI-12, RS-485, RS-232, and analog)
• Two way 4G LTE cellular communications

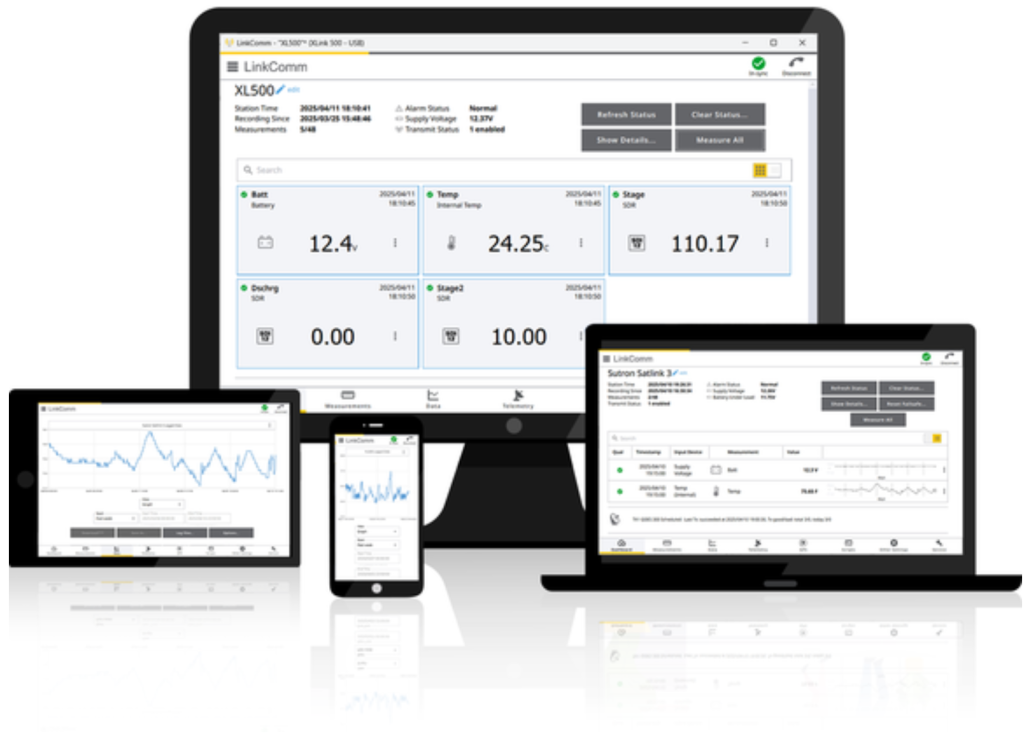

• Local and remote configuration using LinkComm software
• Onboard data storage and system redundancy

Water Level Measurement Instruments (Sutron / OTT)

The system supports multiple water level sensing technologies depending on site conditions:

• OTT PLS 500 Vented Pressure Transducer
  Suitable for accurate water level and temperature measurement in rivers, channels, and culverts.

• OTT RLS Radar Level Sensor
  A non-contact solution ideal for locations with debris, sediment, or difficult access where submerged sensors may be unsuitable.

Weather Monitoring (Lufft)

Compact weather sensors from Lufft integrate seamlessly with the station to provide local meteorological context:

• Lufft WS Series Compact Weather Sensors
  All in one sensors measuring combinations of:

  • Precipitation
  • Air temperature
  • Relative humidity
  • Barometric pressure
  • Wind parameters (model dependent)

These sensors reduce installation complexity while delivering reliable weather observations at flood prone sites.

Power System

Each station is powered by a solar panel and rechargeable battery, providing full system autonomy. Battery backup ensures continued operation during extended low light conditions or temporary solar charging failure.

Scalable & Future Ready

The modular design allows additional instruments to be added over time as monitoring requirements change. Weather sensors, rainfall gauges, radar level sensors, and cameras can be integrated without redesigning the core station, protecting long term investment.

This product is manufactured by Sutron and proudly represented by Aqualab Scientific.
