Aqua TROLL 500

The Aqua TROLL 500 is a rugged multiparameter water quality sonde designed for accurate spot checking, low flow groundwater sampling and long term unattended monitoring.  It has four interchangeable sensor ports and a dedicated wiper port, with an optional integrated pressure sensor.

The Aqua TROLL 500 combines the best of both worlds.

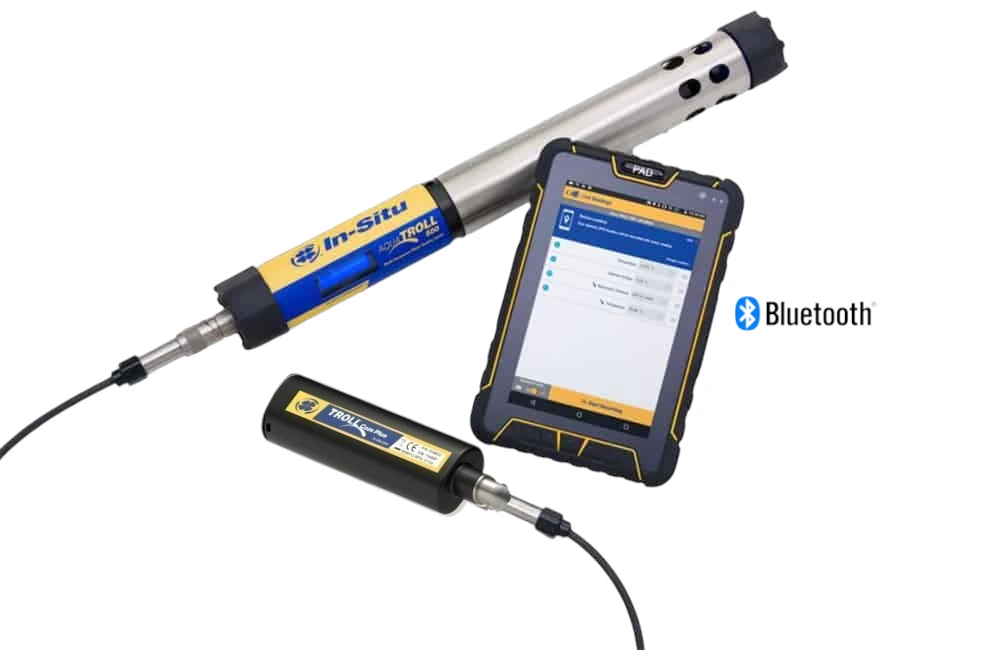

For field use, when coupled with TROLL Com Plus, live data can be viewed via the VuSitu Mobile App using any Bluetooth enabled Apple or Android phone or tablet.  Technicians can review readings, check instrument status, configure settings and complete calibrations directly in the field.  There is no need to purchase an additional handset.

For unattended deployments, the Aqua TROLL 500 connects to external power, data logging or telemetry equipment. Compatible VuLink telemetry and external data loggers support reliable long term monitoring without regular site visits.

The Aqua TROLL 500 is suitable for:

• Long Term Unattended Logging
• Spot Checking (with TROLL Com Plus)
• Low Flow Groundwater Sampling
• Groundwater Monitoring
• Surface Water
• Fresh Water
• Saltwater
• Lakes, Rivers and Wetlands
• Coastal Monitoring
• Stormwater Management
• Dam Monitoring
• Mine Water Monitoring
• Remediation Monitoring

Sensor Suite

The Aqua TROLL 500 can be configured with up to four interchangeable sensors, plus an optional antifouling wiper.

Available parameters include:

• Temperature (Temp)
• Conductivity (EC)
• pH
• Oxidation reduction potential (ORP)
• Rugged dissolved oxygen (RDO)
• Turbidity (Turb)
• Chlorophyll a
• Phycocyanin (BGA-PC)
• Phycoerythrin (BGA-PE)
• Fluorescent dissolved organic matter (FDOM)
• Crude oil
• Rhodamine WT
• Fluorescein WT
• Ammonium (ISE)
• Chloride (ISE)
• Nitrate (ISE)

Note: Combination pH/ORP and Temp/EC sensors are available to extend your sensor capacity!

Please consult with Aqualab regarding your sensor selection.

The pressure sensor is available as an optional extra. Both vented and non-vented pressure sensors are available in the following ranges:

• 0 to 9 m
• 0 to 30 m
• 0 to 76 m
• 0 to 100 m

Note: The integrated pressure sensor does not occupy one of the four interchangeable sensor ports.

Standard Package

The Aqua TROLL 500 standard package includes:

• Aqua TROLL 500 sonde
• Documentation
• Maintenance kit
• Instrument tools
• Configuration-dependent items, including selected sensors, an RDO cap and pH/ORP or ISE sensor maintenance supplies, where applicable.

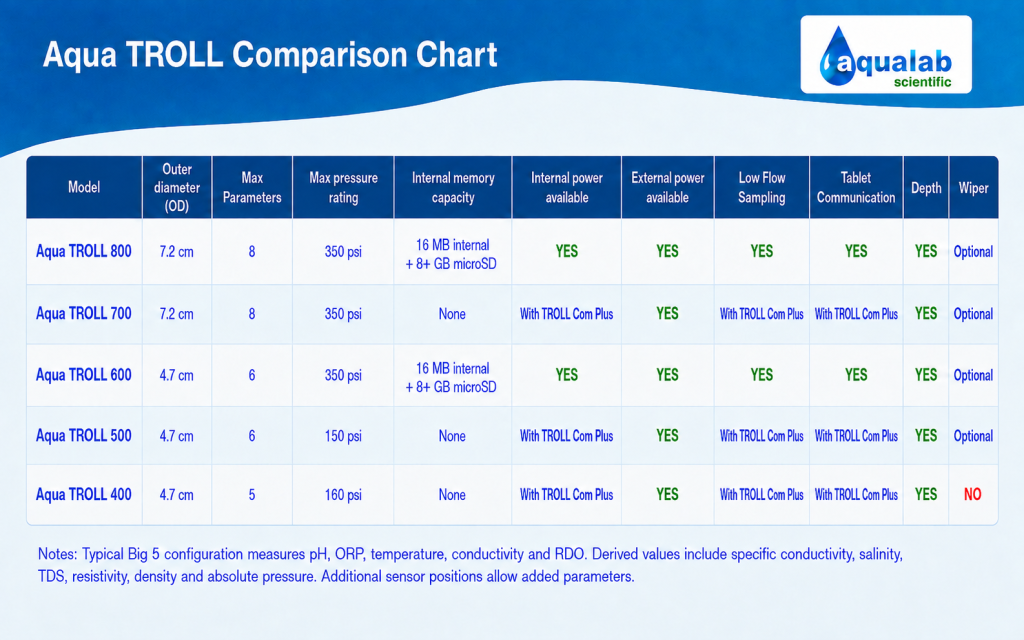

Models Available

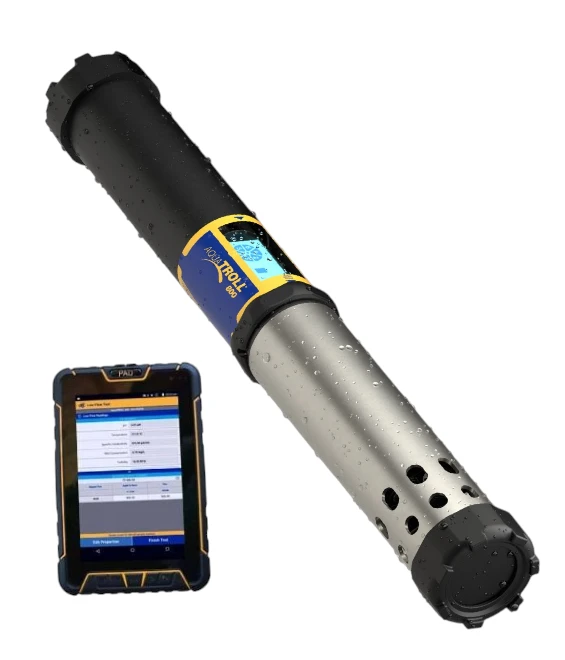

• Aqua TROLL 800

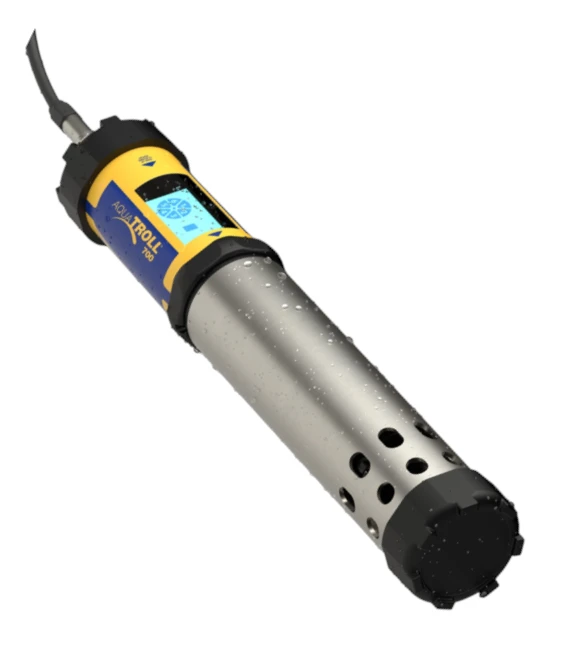

• Aqua TROLL 700

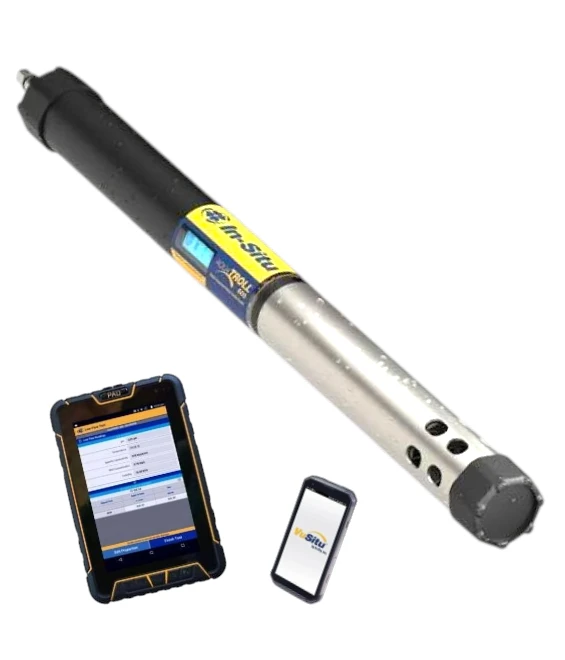

• Aqua TROLL 600
• Aqua TROLL 500

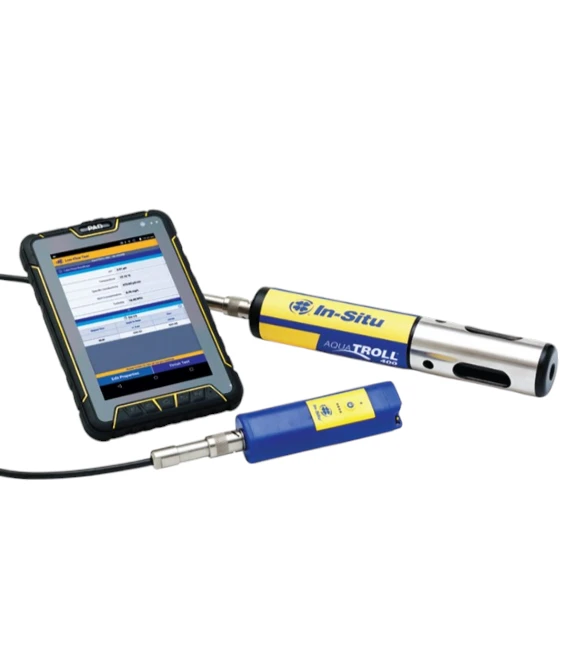

• Aqua TROLL 400

Low Flow Sampling

The Aqua TROLL 500 is suitable for use when low flow groundwater sampling when coupled with the TROLL Com Plus portable Bluetooth device, the VuSitu Mobile App and flow cell.

This setup provides real time readings and trend information during purging and sampling.  The Groundwater Sampling Assistant helps technicians assess parameter stabilisation, while the mobile app reduces manual transcription and supports calibration and low flow sampling reports.

By bringing instrument readings, field guidance and digital records together, the system helps technicians determine when representative sampling conditions have been achieved.  Data can then be securely managed and emailed directly from the tablet to a computer, improving consistency, efficiency and traceability across groundwater monitoring programs.

Email data directly from your tablet to your computer!

Power & Internal Logging

The Aqua TROLL 500 does not include internal batteries, internal memory or a micro SD card for standalone data logging.  It requires an external power source of 8 to 36 VDC and uses an external data logger or telemetry system to record data.

When connected to compatible VuLink telemetry equipment, the Aqua TROLL 700 can transmit monitoring data to HydroVu or an external FTP server.

• TROLL Com Plus (when spot checking)
• External power supply from 8 to 36 VDC
• Data recording through an external data logger or telemetry system
• Compatible with VuLink telemetry and HydroVu data services
• Typical standby current of less than 0.2 mA
• Typical measurement current of 40 mA
• Maximum measurement current of 75 mA
• External power supply must not exceed 4 amps

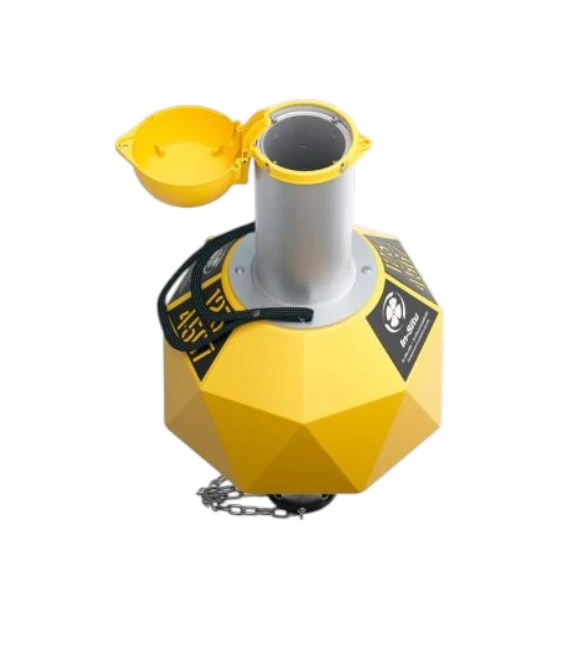

Rugged Buoy

The Rugged Buoy is a reliable, cost effective monitoring platform for long term deployment of water quality instruments and telemetry equipment in ponds, lakes, bays, rivers and coastal near shore environments.

Antifouling Options

An optional dual-sided antifouling wiper is available for long term deployments.  The wiper cleans the sensors and restrictor simultaneously to help maintain measurement quality and reduce maintenance requirements.

Cable Options

• Vented polyurethane cable
• Non-vented polyurethane cable
• Vented Tefzel cable
• Twist-Lock termination
• Stripped and tinned termination
• Custom cable lengths up to 1,219 m

The TROLL Com Plus communication device, cables and VuLink telemetry equipment are sold separately.

Communication Options

The Aqua TROLL 500 supports the following outputs:

• RS-485/MODBUS
• SDI-12

The Aqua TROLL 800 can be configured and calibrated using the VuSitu Mobile App.  It can also connect with VuLink telemetry equipment, SCADA/PLC systems, HydroVu Data Services and compatible third party data loggers, samplers, controllers and telemetry systems.

Accessories

Available accessories include:

• TROLL Com Plus communication device
• VuLink telemetry equipment
• VuSitu Mobile App
• Vented and non-vented cables
• Antifouling wiper
• Copper restrictor
• Dual titanium restrictor and storage chamber
• External power options
• Calibration and maintenance kits

This product is manufactured by Ott/ In-Situ and proudly represented by Aqualab Scientific.
